USB Device Tree Viewer

To better understand compatibility issues with the touch-back function, we may ask you to run the USB Device Tree Viewer software:

For this test, you will need the following device:

  • A notebook with Windows 10/11.

Connect screen to Windows computer

  • Disconnect your screen from the EZCast Pro Box and connect both the USB and HDMI cables of your touch-enabled screen to your Windows computer.

  • Test the touch functions of your screen and check if the touch gestures are working properly.

Download USB Device Tree Viewer

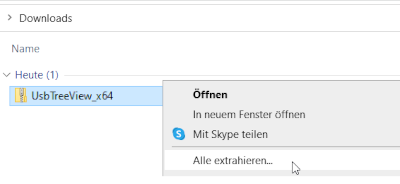

  • Run the file UsbTreeView.exe:

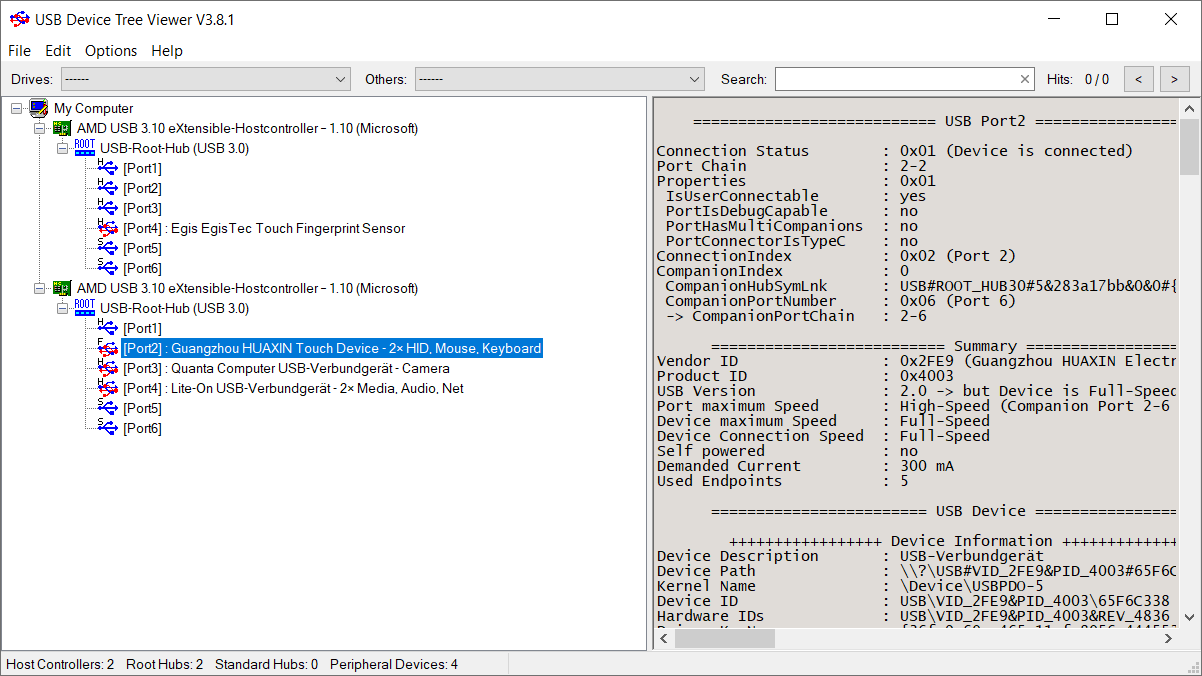

  • The software will open and display the connected touch device:

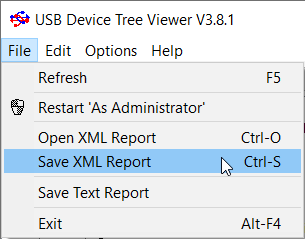

  • Save an XML report using the File -> Save XML Report function:

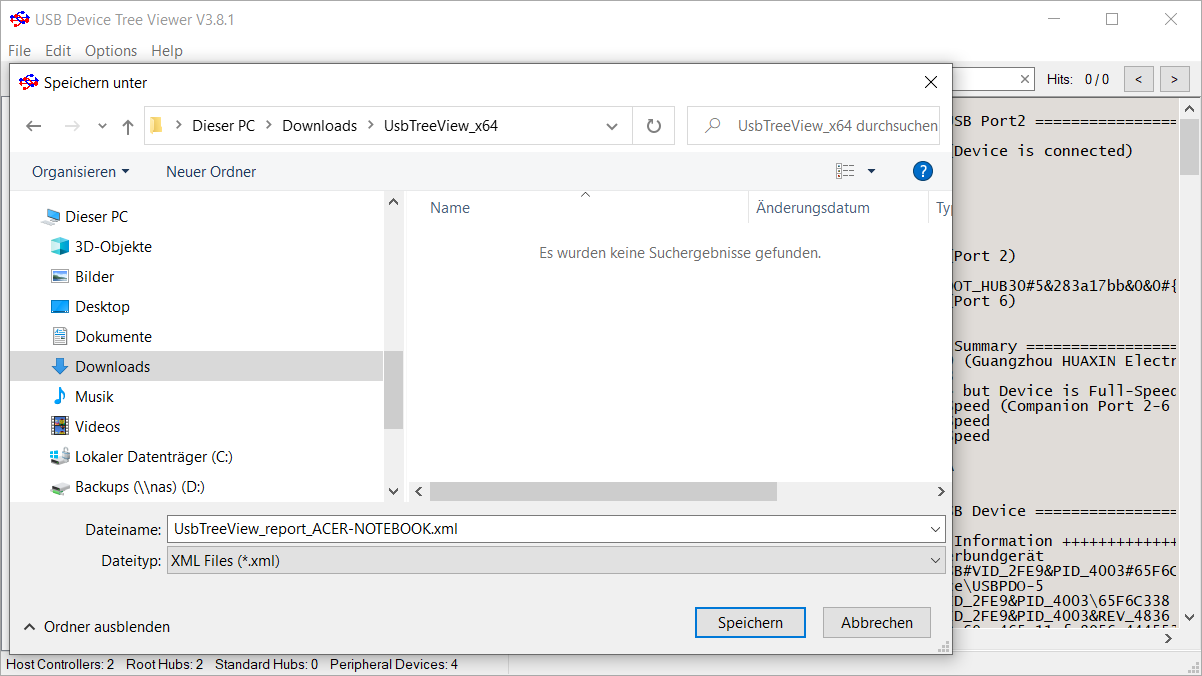

  • Choose a folder to save the XML report and click Save:

Note

Currently, the device types Keyboard, Mouse, and Touch Display are supported. A driver for Pen is not currently supported. With a trial unit, you can test in advance whether the EZCast Pro Box II is compatible with your touch display.
