Download Log File

For support purposes, we may ask you to send us a log file from your device. There are two types of log files:

Note

We only offer support services to customers who ordered directly from us. Please contact your dealer.

The Download Debug Log File function refers to the log file that is downloaded directly from the EZCast Pro device.

With the Debug Over IP procedure, the debug information is read via your network infrastructure using terminal software and saved into a log file.

Download Debug Log File

You need to activate the Engineer Mode and select the Download Debug Log function. With the Advanced Settings feature, you can log in and download the log file using any web browser.

Open Advanced Settings

  • Connect your device to the EZCast Pro II device, either via the SSID of the EZCast Pro II device or the same Wi-Fi or LAN infrastructure to which the EZCast Pro II device is connected:

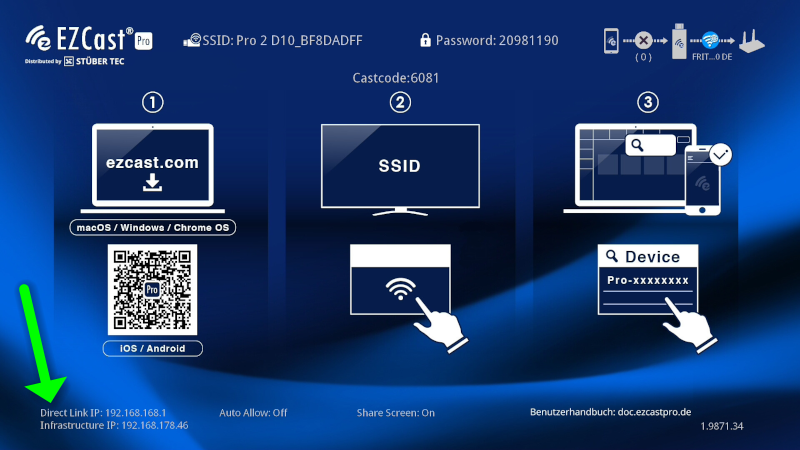

  • Enter the IP address of your EZCast Pro device in any web browser, which is displayed at the bottom left of the home screen:

Log in as Admin

  • Enter the admin password and click OK to log in. The default password is 000000. If this password is not accepted, reset the device using the Reset switch.

Activate Engineer Mode

  • From the main menu, select Admin Settings:

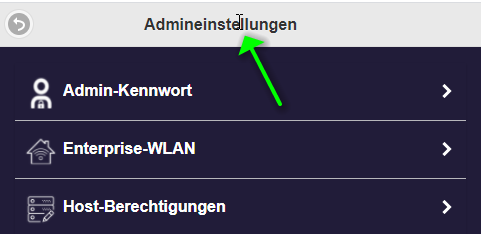

  • Click nine times in a row on the Admin Settings text:

  • Click Back, then select the Engineer Mode menu item:

Enable Syslog

  • Click once on the Enable Syslog function until the last digit shows a 1:

  • To activate the setting, restart the EZCast Pro device. In the main menu, select Restart.

  • Then click the Restart button again.

Reproduce the Error

At this point, you should try to reproduce the issue so that the action / error is recorded in the log. For example, you can try a previously failed Miracast connection using [Windows] + [K].

Download Debug Log File

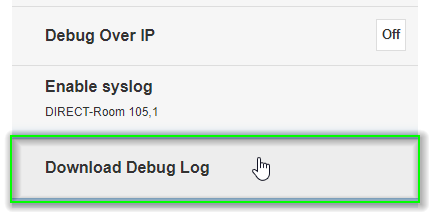

  • In the Engineer Mode menu, click the Download Debug Log function. A log file will be downloaded:

Disable Syslog

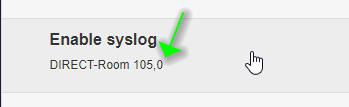

  • Click once on the Enable Syslog function until the last digit shows a 0:

  • To finalize the setting, restart the EZCast Pro device. In the main menu, select Restart.

  • Then click the Restart button again.

Perform Debug Over IP

You need to activate the Debug Over IP function and read the process information of the EZCast Pro device. The data is then saved into a log file.

With the Advanced Settings feature, you can log in and download the log file using any web browser.

Open Advanced Settings

  • Note the IP address displayed at the bottom left of the home screen.

  • Now open your web browser.

  • Click in the address bar of the browser and enter the IP address of the EZCast Pro device.

Log in as Admin

  • Enter the admin password and click OK to log in. The default password is 000000. If this password is not accepted, reset the device using the Reset switch.

Activate Debug Over IP

  • From the main menu, select Admin Settings:

  • Click nine times in a row on the Admin Settings text:

  • Click Back, then select the Engineer Mode menu item:

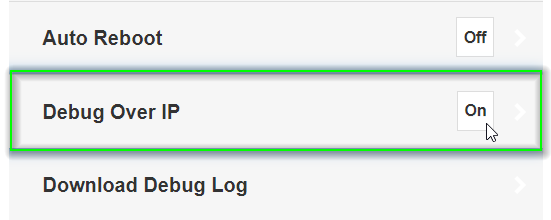

  • Click the Debug Over IP function to activate the network service. A log file will be downloaded:

  • To activate the setting, restart the EZCast Pro device. In the main menu, select Restart.

  • Then click the Restart button again.

Download the terminal software Tera Term and run the installation package:

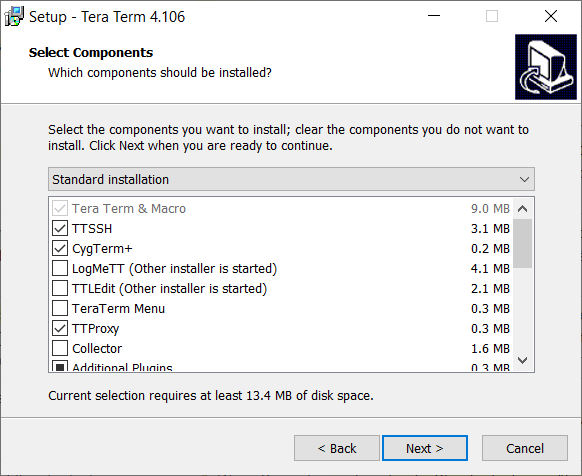

  • You can accept the default settings:

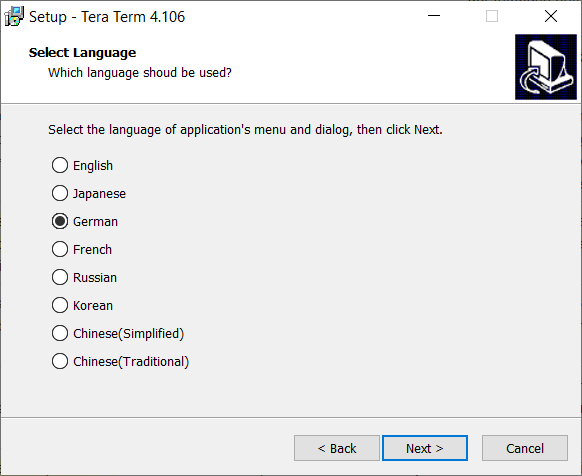

  • Select your preferred language:

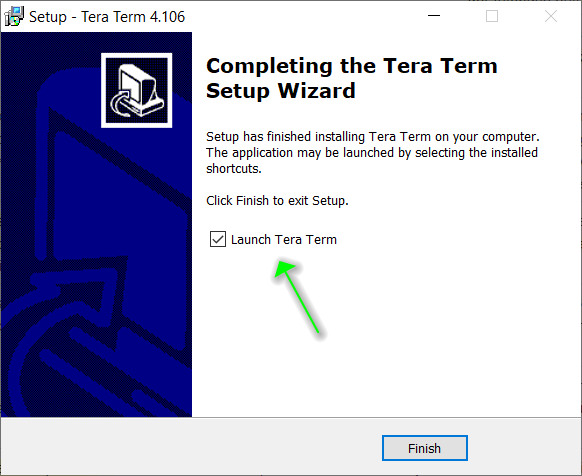

  • At the end of the installation, check Launch Tera Term and click Finish:

  • Note the IP address displayed at the bottom left of the home screen.

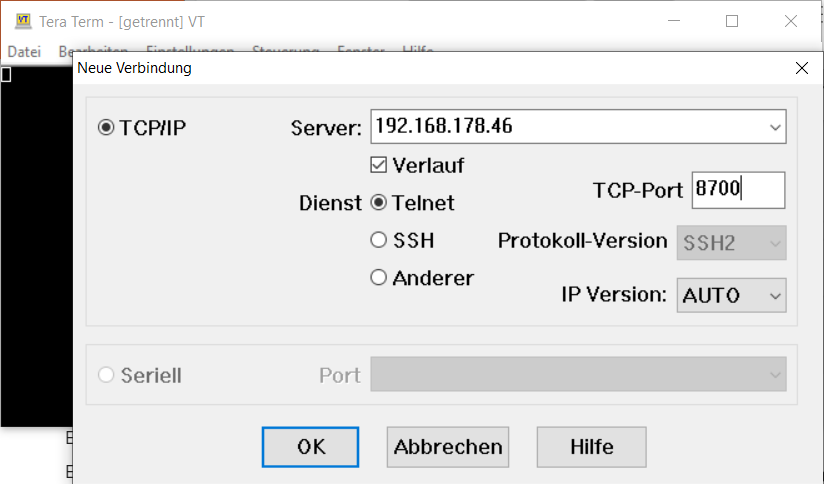

  • In the New Connection dialog window, enter the IP address of your EZCast Pro device and the TCP port 8700, and select the service Telnet. Your computer must be on the same network as the EZCast Pro device:

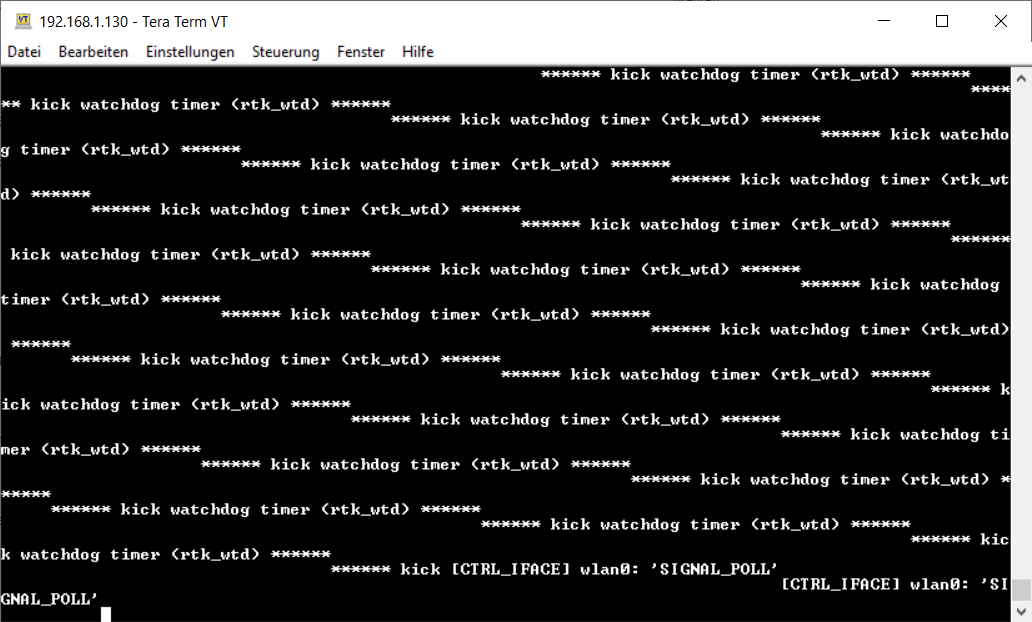

  • If the connection is successfully established, the process information will be displayed in the Tera Term window:

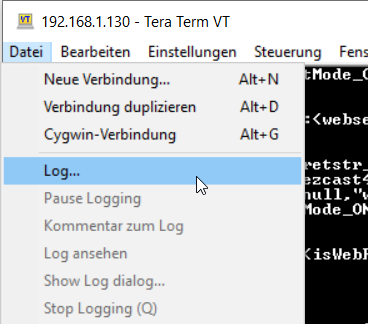

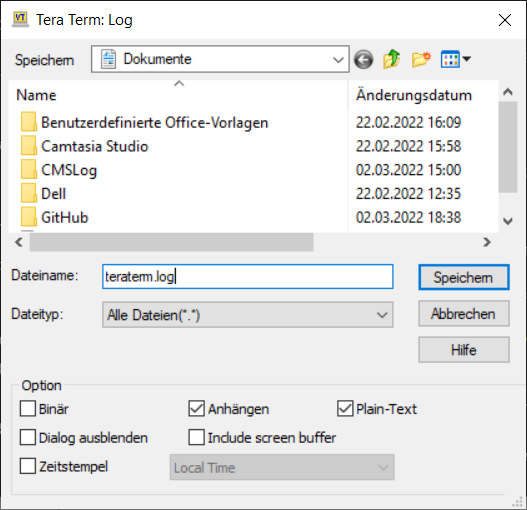

  • Under File -> Log..., save the log file in the Documents folder:

Note

At this point, all activities of the EZCast Pro device are recorded into the log file. Now you must reproduce the events that caused the issue, e.g., perform the touchscreen gestures that triggered the problem, so that the issue recurs and is logged in the file.

Deactivate Debug Over IP

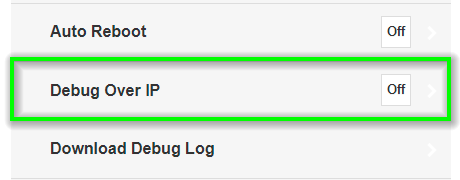

  • Finally, at the end of the procedure, you can deactivate the Debug Over IP function again:

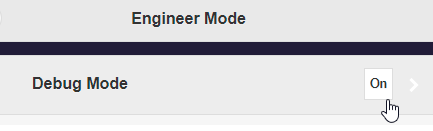

  • To hide the Engineer Mode again, click the Debug Mode function. You will return to the main menu:
