Reinstall Firmware¶

You can restore the EZCast Pro Box II by reinstalling the firmware. There are several reasons for this:

• The EZCast Pro Box II does not power on. The power supply has already been checked. In this case, an interrupted update process may be the cause.

• The EZCast Pro Box II is unstable and a reset did not help.

• You have the choice: either install the latest firmware or a different firmware version.

Install Firmware via USB Cable¶

Requirements¶

• You need a Windows PC to load the firmware software onto the EZCast Pro Box II.

• The EZCast Pro Box II must be connected to the Windows PC using a USB data cable A/A or A/C.

Identify Model B10/B11¶

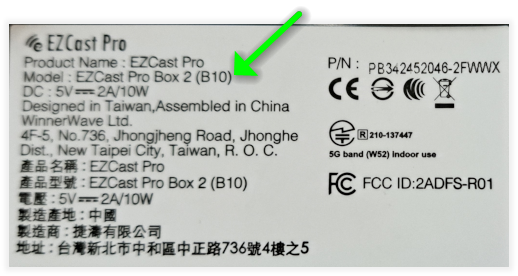

First, check the model number of the device. On the back, it either says B10 or B11.

Install B10 Repair Tool¶

• Download the EZCast Pro Box II (B10) Repair Tool.

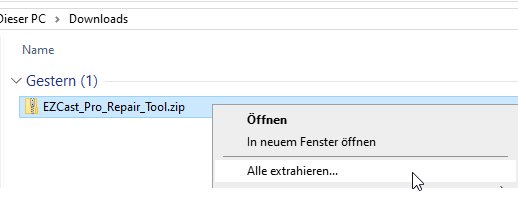

• Extract the file EZCastPro.B10.Repair.Tool.zip.

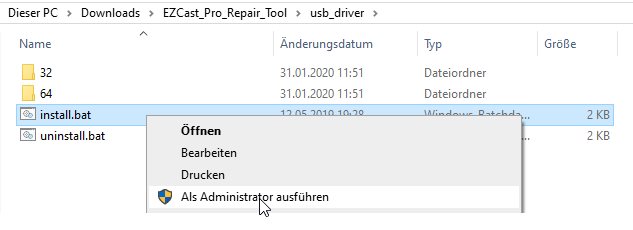

• Install the drivers by running the batch file EZCast_Pro_Repair_Tool\usb_driver\install.bat as administrator.

• When the following security message appears, select "Install":

Connect USB Cable¶

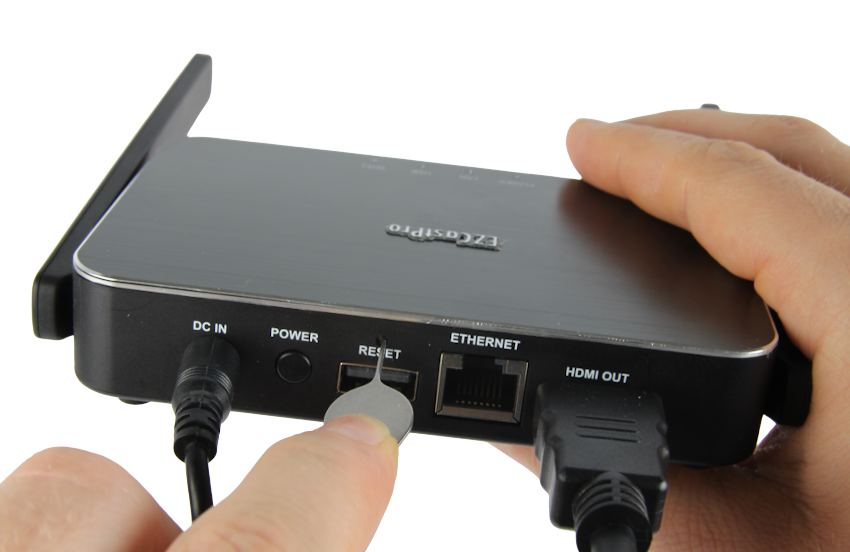

• To set the EZCast Pro Box II to update mode, turn off the device using the power button. Using a small "pen," hold down the reset button. Turn on the device using the power button, then release the reset button.

• Now connect the USB cable to the USB-A port of the box and to a USB port of your Windows PC.

If the driver is correctly installed and the EZCast Pro Box II is connected, the device “Realtek generic USB Device” should appear in the device manager. If not, check the driver installation, cable configuration, and update mode as described in the previous step.

Install Latest Firmware¶

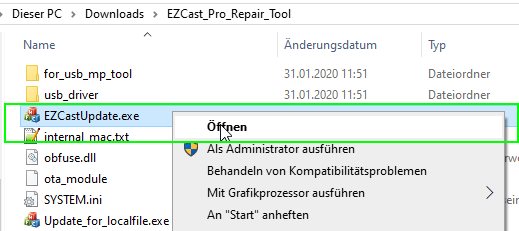

• In the folder EZCast_Pro_Repair_Tool, run the file EZCastUpdate.exe.

The following window will appear. If the EZCast Pro Box II is in update mode, the tool will display “EZCast device connected.”

• Select Download to download the latest firmware.

The firmware will begin downloading.

• To start the firmware installation, select Upgrade.

The firmware will be installed.

If the installation was successful, the following message will appear:

The EZCast Pro Box II is ready for use again.

Install Other Firmware¶

To install a previous or beta firmware version, download one of the following files:

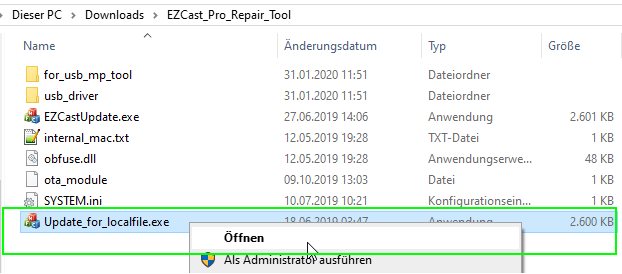

• In the folder EZCast_Pro_Repair_Tool, run the file Update_for_localfile.exe.

The following window appears. If the EZCast Pro Box II is in update mode, the tool will display “EZCast device connected.”

• Use the Firmware button to select the desired firmware file.

• To start the firmware installation, select Upgrade.

The firmware will be installed.

If the installation was successful, the following message will appear:

The EZCast Pro Box II is ready for use again.

Install B11 Repair Tool¶

• Download the EZCast Pro Box II (B11) Repair Tool.

• Extract the file EZCastPro.B11.Repair.Tool.zip.

• Install the drivers by running the batch file EZCast_Pro_Repair_Tool\usb_driver\install.bat as administrator.

• When the following security message appears, select "Install":

Connect USB Cable¶

• To set the EZCast Pro Box II to update mode, turn off the device using the power button. Using a small "pen," hold down the reset button. Turn on the device using the power button, then release the reset button.

• Now connect the USB cable to the USB-A port of the box and to a USB port of your Windows PC.

If the driver is correctly installed and the EZCast Pro Box II is connected, the device “Realtek generic USB Device” should appear in the device manager. If not, check the driver installation, cable configuration, and update mode as described in the previous step.

Install Other Firmware¶

To install a previous or beta firmware version, download one of the following files:

• In the folder EZCast_Pro_Repair_Tool, run the file Update_for_localfile.exe.

The following window appears. If the EZCast Pro Box II is in update mode, the tool will display “EZCast device connected.”

• Use the Firmware button to select the desired firmware file.

• To start the firmware installation, select Upgrade.

The firmware will be installed.

If the installation was successful, the following message will appear:

The EZCast Pro Box II is ready for use again.

Install Firmware with CMS¶

Using the CMS (Central Management System), you can not only install the current firmware from the Internet on multiple EZCast Pro II or QuattroPod devices, but also a previous or beta firmware version.

• Download a firmware for the EZCast Pro Box II.

• Select the desired devices, then click the Remote button -> and the Device Firmware upgrade function.

• Under the FILE tab, click the File button and select the firmware file you downloaded in the first step.

The new firmware will be downloaded and installed automatically.

Settings after Reinstallation¶

Reinstalling the firmware will reset all settings. Our recommended settings can be found here.
