Advanced Settings

The Advanced Settings function allows you to update the firmware and conveniently adjust many settings of the EZCast Pro Box II via remote access.

Open Advanced Settings¶

• Connect your device to the EZCast Pro II device, either via the EZCast Pro II's SSID or through the same WiFi/LAN infrastructure the EZCast Pro II is connected to:

• Enter your EZCast Pro device's IP address (shown at bottom left of home screen) in any web browser:

Log in as Admin¶

• Enter the admin password (default: 000000) and click OK. If rejected, perform a hard reset.

• During first login, you must change the admin password, then log in again.

Connected Devices¶

Shows connected users and their assigned roles as either Host or Guest. More information about host and guest roles here.

Conference Control¶

The conference control allows you to:

• Disconnect all devices
• Assign host/moderator role to a guest
• Reposition devices on screen

Complete guide here.

Device Management¶

This section helps you change settings like the interface language, resolution, or maximum connections.

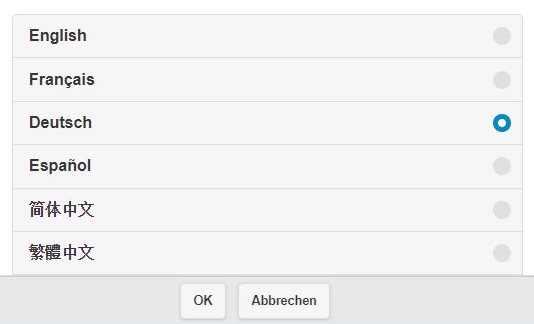

Language¶

Select the display language for Advanced Settings menu.

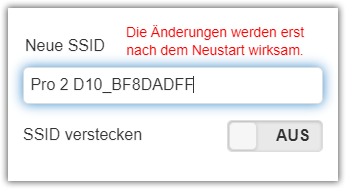

Device Name / SSID Name¶

Change or hide the device name/SSID here:

The EZCast Pro Box II has three network interfaces. Disabling the SSID (wlan1) makes the box only reachable via router or Miracast (P2P).

Resolution¶

Select the output resolution of EZCast Pro Box II. Choose a specific resolution or select Auto for automatic optimal resolution.

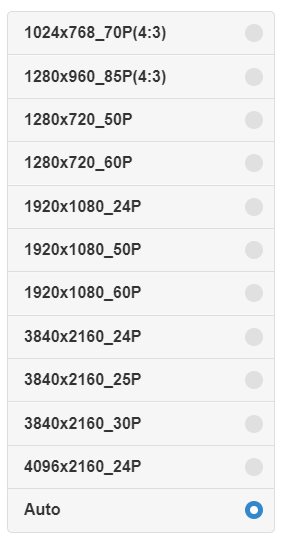

Available resolutions:

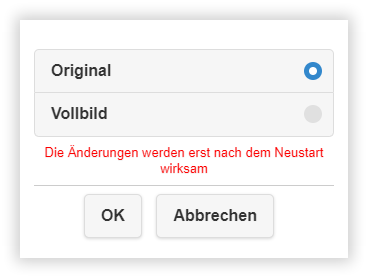

Display Mode¶

Set whether your device's display appears on external screen/projector in Original or Full Screen mode.

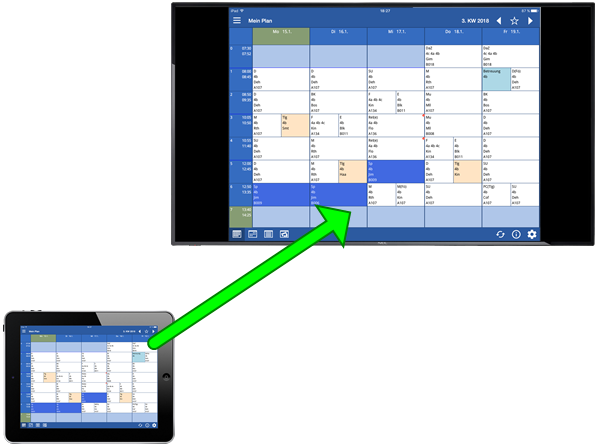

Original¶

Original mode shows the native aspect ratio of the device (e.g. iPad) on external display:

Full Screen¶

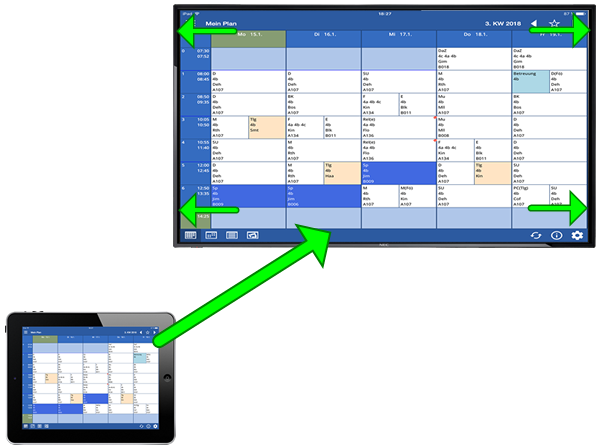

Full screen mode automatically adjusts input to match external display's aspect ratio:

AirPlay Mode¶

AirPlay is enabled by default. To disable/re-enable, select desired option. Complete AirPlay guide here:

Select video playback mode: * Auto - Automatic mode * Mirror only - Mirrors screen and video content * Mirror + Video stream - Mirrors screen and streams online videos (e.g. YouTube)

AirView¶

Enable/disable AirView. Complete guide here.

EZNote¶

Enable/disable EZNote.

Castcode Control¶

Set whether guests must enter a 4-digit code to transmit content.

• OFF - No passcode required
• Random - Random (changes automatically on power cycle)
• Fixed - Set fixed castcode

Castcode appears here:

Complete guide here.

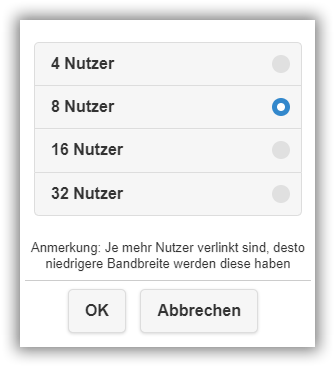

Max Connections¶

Sets maximum number of direct connections EZCast Pro Dongle II supports (plus 32 router connections).

Note: More connected users reduces bandwidth per user.

Android Audio Streaming¶

When enabled, you can stream audio from a Bluetooth-compatible device (including Android, Windows, Apple). This function works independently of screen mirroring protocols and can be used to play music. Note: This function cannot be protected with a security code or password.

Google Cast¶

Enable Google Cast device mirroring. Complete guide here.

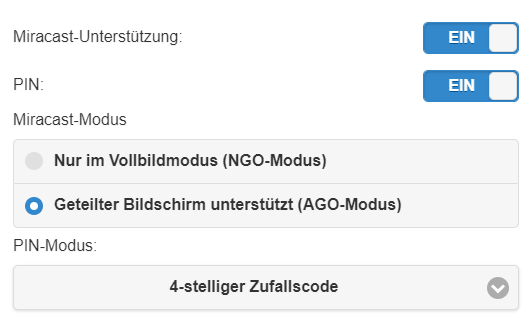

Miracast¶

Enable Miracast device transmission. Complete guide here.

Legacy Mode (2.4GHz WiFi)¶

Enable to connect EZCast device via 2.4GHz WiFi frequency. For dual-band support, disable Band Steering in your AP's SSID settings. Complete WiFi requirements here.

Timed Restart¶

To optimize the performance of the EZCast Pro device, especially for devices running continuously, enable the Timed Restart function. The receiver will automatically restart under the following conditions:

• The EZCast Pro Box II has been inactive for 2/4/8 hours.
• No user has been connected for at least 2/4/8 hours.
• The web interface settings have not been used for 2/4/8 hours.

Network Management¶

Configure internet, IP, and WiFi channel settings.

Connect to 5GHz WiFi Router/AP¶

Connect EZCast Pro Box to your WiFi router.

Note: Only connects to 5GHz routers unless Legacy Mode enabled.

Remember WiFi¶

Enable to maintain persistent internet/router connection. Disabled = manual reconnection after restart.

WiFi IP Settings¶

Assign static IP or use DHCP.

Change/Hide WiFi Password¶

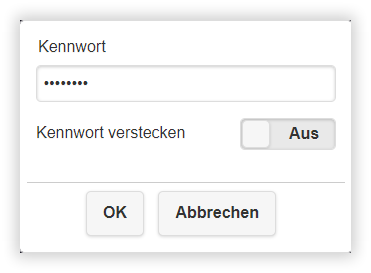

Set custom WiFi password and optionally hide it for security.

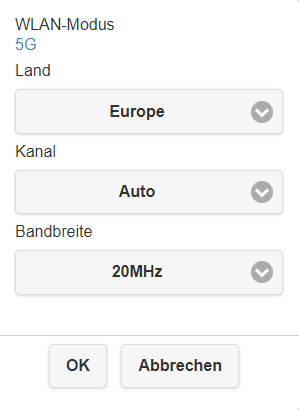

WiFi Channel¶

Adjust WiFi mode to avoid interference.

Admin Settings¶

Update firmware, reset defaults, and configure advanced settings.

Admin Password¶

Change receiver admin password.

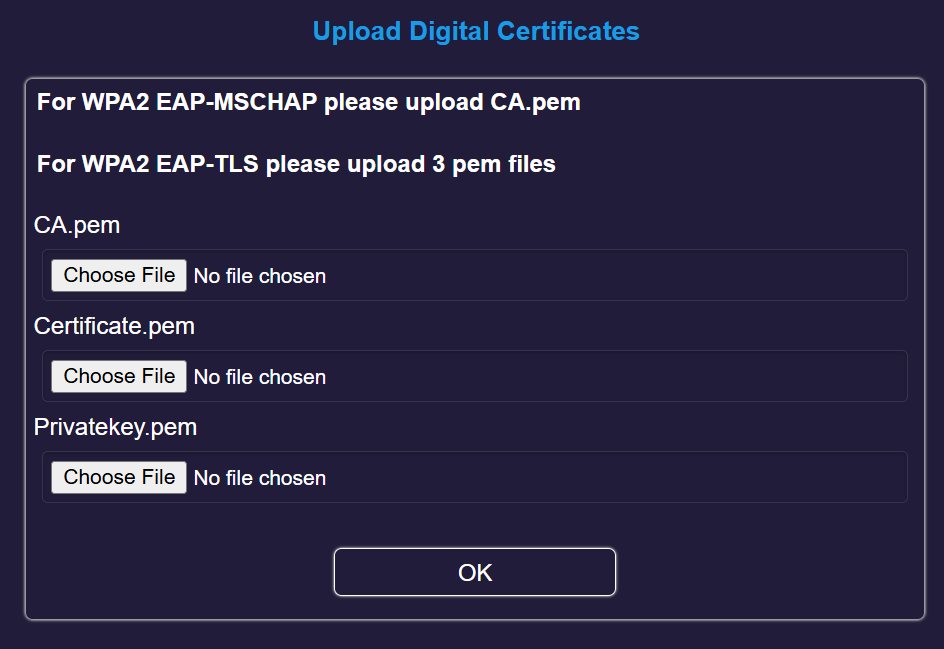

Wi-Fi Enterprise¶

Upload a digital certificate.

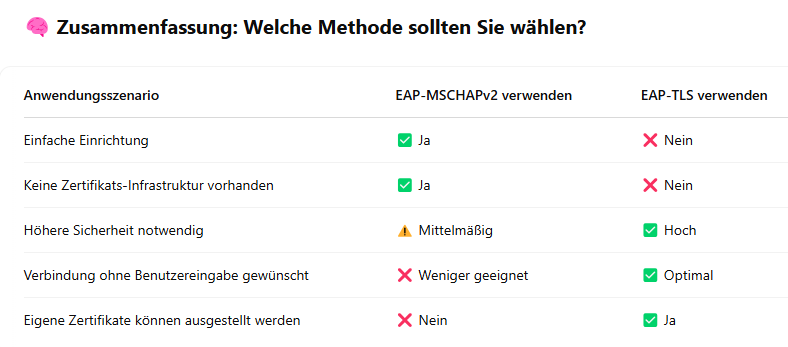

Which method should you choose?¶

WPA2 EAP-MSCHAPv2 (also known as PEAP-MSCHAPv2)¶

• ✅ Upload: Only the file CA.pem
• ❌ No client certificate or private key required
• 🔑 Authentication: Via username and password
• 🔐 Purpose of CA.pem:
  It is used to verify the certificate of the RADIUS server, so the device only accepts trusted servers.

✳️ In the EZCast menu, you must also enter a username and password.
The CA.pem file only protects you from accidentally connecting to a fake server.

WPA2 EAP-TLS (Certificate-based Authentication)¶

• ✅ Three files are required:
• CA.pem – Trusts the server certificate
• Certificate.pem – Identifies the device

• Privatekey.pem – The corresponding private key for the certificate

• ❌ No username or password required

• 🔐 Authentication: Is performed through mutual verification of certificates

• ✳️ All three files must match:
  The client certificate (Certificate.pem) must be signed by the CA (CA.pem),
  and the private key (Privatekey.pem) must belong to the certificate.

Host Permissions¶

Control which advanced settings functions hosts can access without admin login.

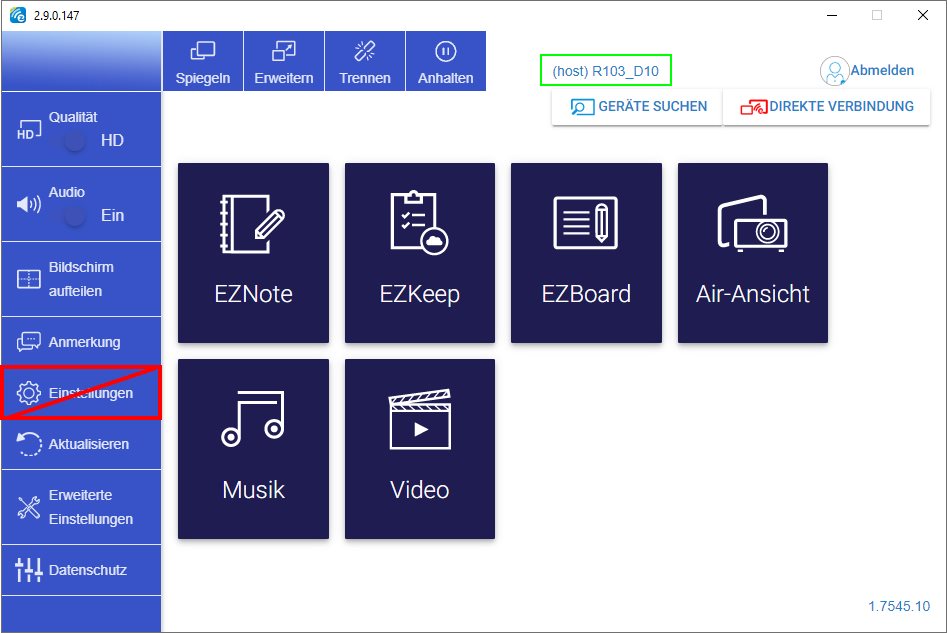

Example: Disabling Device Management hides settings button in software/app.

Above configuration (disabled device/network management) only shows Conference Control and Restart. Note: Connected Devices and About Device always remain available.

Host Control¶

First connecting user becomes host, others are guests. By default, host must approve each transmission request:

Auto Approve Requests
Set On for automatic approval.

Screen Sharing
Enabled by default (split-screen for up to 4 devices). Disabled = full-screen takeover by next approved sender.

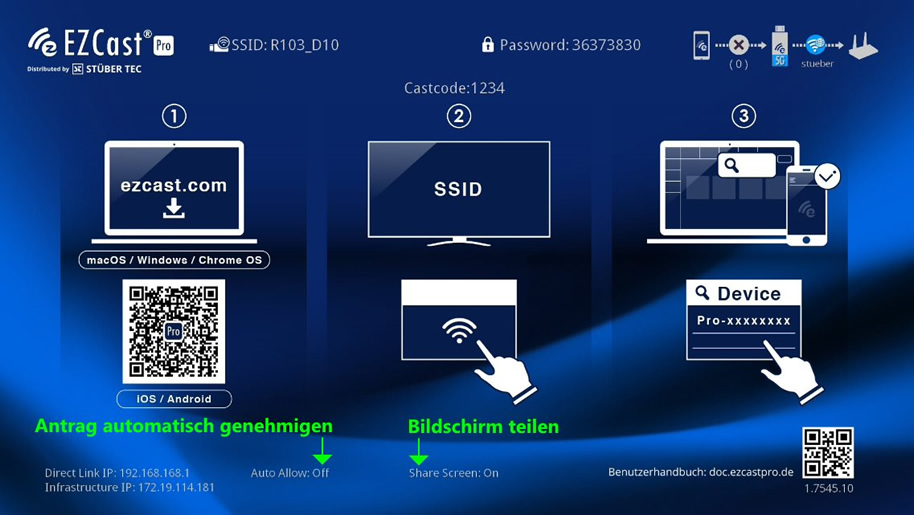

Host control status appears at bottom of home screen:

Internet Access Control¶

Control whether connected devices can access internet via EZCast Pro II. Default: All allowed.

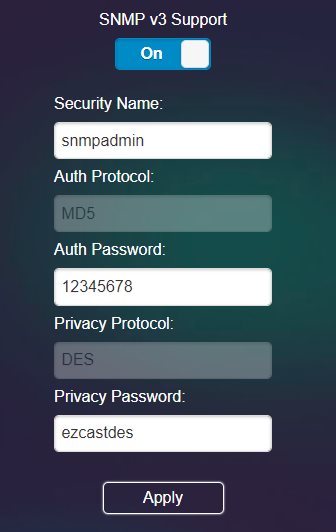

SNMP¶

Enable SNMP V3 support.

My Screen¶

If desired, you can replace landing page image. This is a permanent change. After uploading a new image, the previous image cannot be restored, even after resetting the device.

Download our default landing page image here.

Dynamic Wallpaper¶

Displays image/video slideshow after configurable inactivity period. Complete guide here.

OTA Update URL¶

Specify OTA server.

CustomSoftAP¶

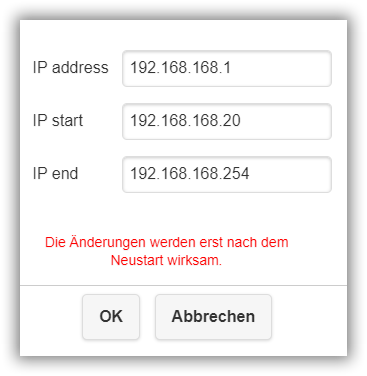

Set IP address range for EZCast Pro device hotspot:

Connection (Network Interfaces)¶

Two connection methods available by default:

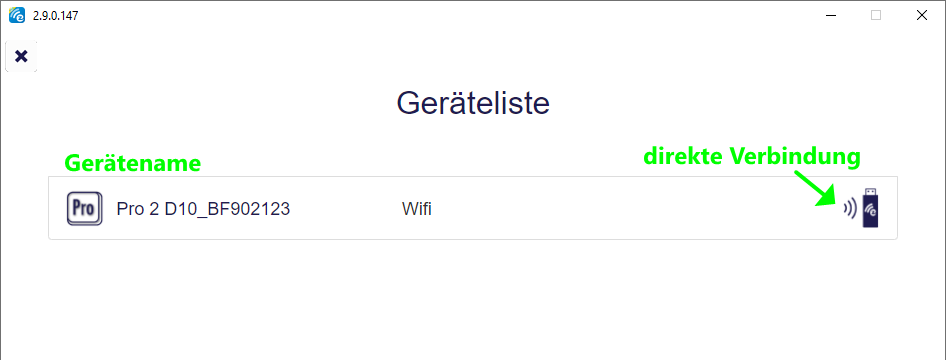

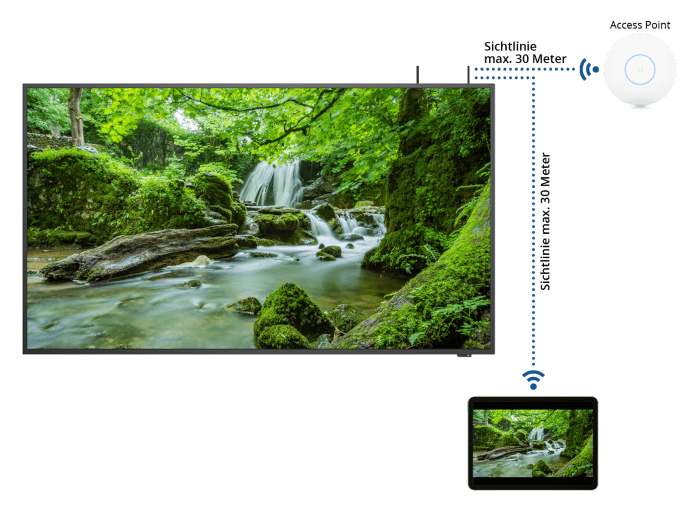

Direct Connection¶

Connect device (e.g. iPad) to EZCast Pro hotspot via on-screen SSID. Internet content relayed via your WiFi/LAN. Provides best bandwidth when far from access point. Requires switching networks.

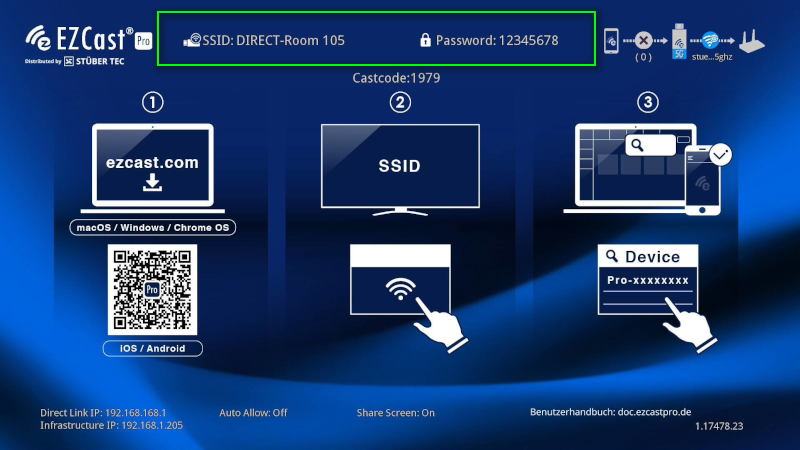

SSID/password shown on home screen:

Via Router¶

EZCast Pro connects to WiFi/LAN. Internet content delivered directly to device. No network switching required.

Default: Both interfaces enabled (Via router or direct connection). Can disable one interface:

First two options show SSID/password on home screen:

Via router only disables hotspot, showing infrastructure-assigned IP:

Fixed Host¶

Designate specific user as permanent presentation host. More info here.

Upgrade (Firmware)¶

Update EZCast Pro II Box firmware for latest features.

Complete guide here.

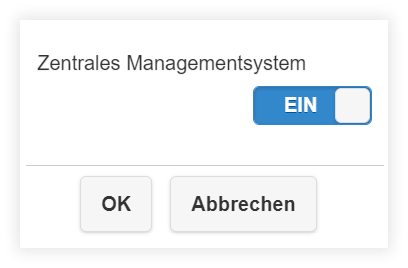

Central Management System¶

Enable CMS support here:

Reset to Default Settings¶

Restore Pro Box to factory defaults. More info here.

Restart¶

Restart the Pro Box.

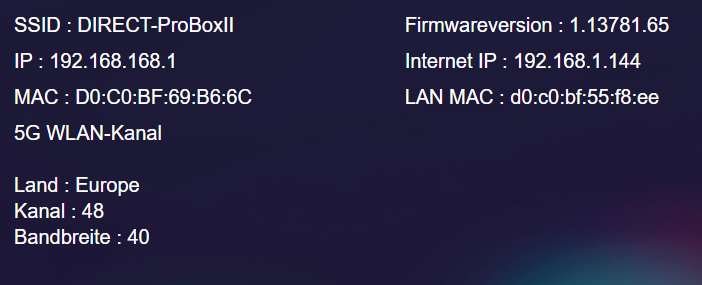

About Device¶

View device overview (firmware version, IP, WiFi data).
